hup! roof systems

The hup! building system is designed to be used with any Ultraframe roofing system which all meet the new Building Regulation U-Value requirements.


Explore:   Glass Roof   |   Hybrid Roof   |   Tiled Roof   |   Flat Roof   |   Vista Roof

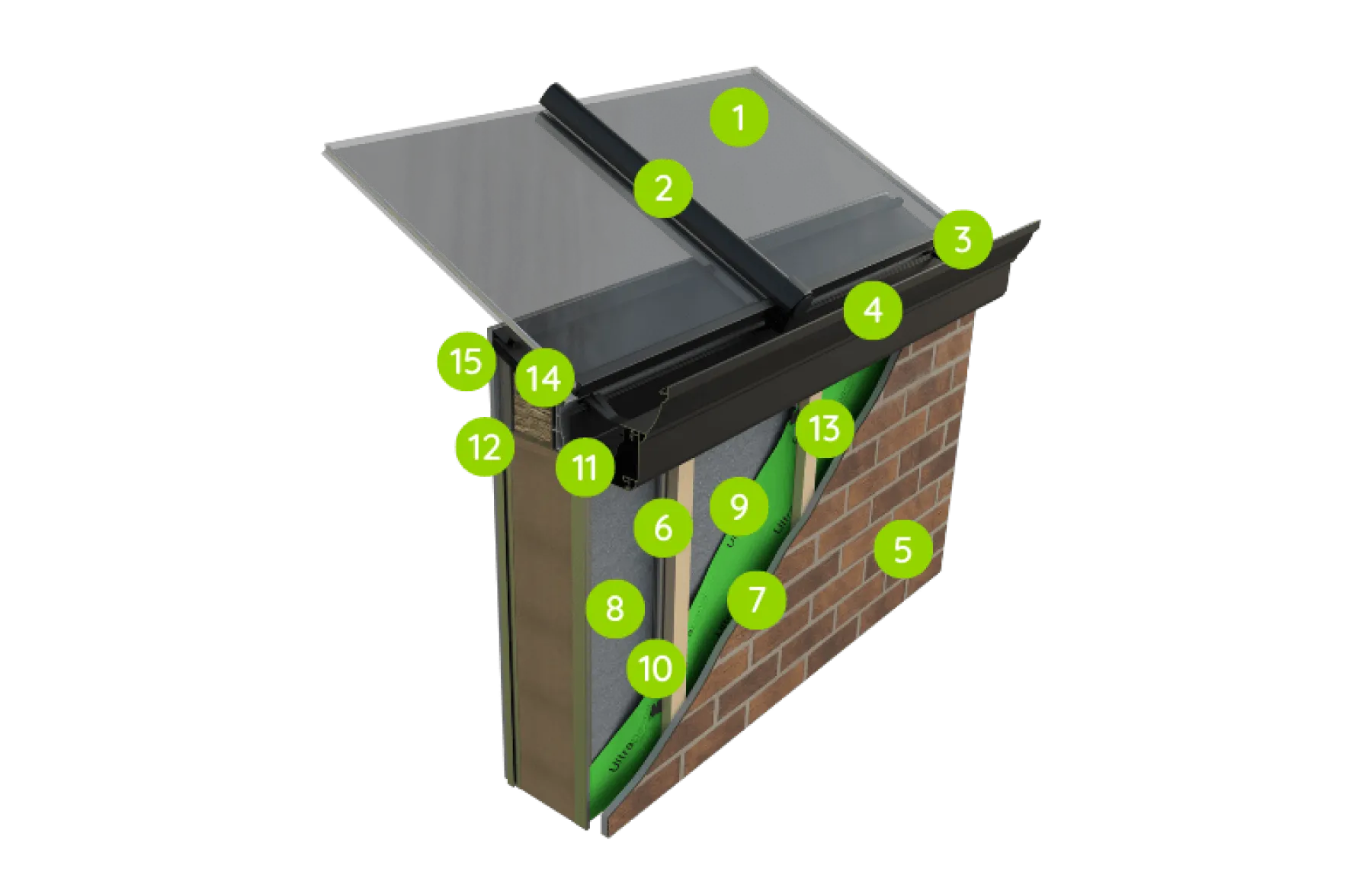

Glass Roof

Available for roof pitches from 2.5° to 40° the hup! Glass Roof is fully configurable to any shape and size. It is available in any colour, compatible with a range of cornice designs and is packed full of high quality Ultraframe components.

  • 1 Performance Glass
  • 2 Glazing Bar
  • 3 Gutter
  • 4 Curved Cornice
  • 5 Brick Mesh
  • 6 Timber Battens
  • 7 Calcium Silicate Board
  • 8 Insulated Wall Panels
  • 9 Membrane
  • 10 Steel Clips
  • 11 Eaves Beam
  • 12 Walling Top Tray
  • 13 Membrane Clips
  • 14 Earthwool
  • 15 Wall Closure
hup! Glass Roof

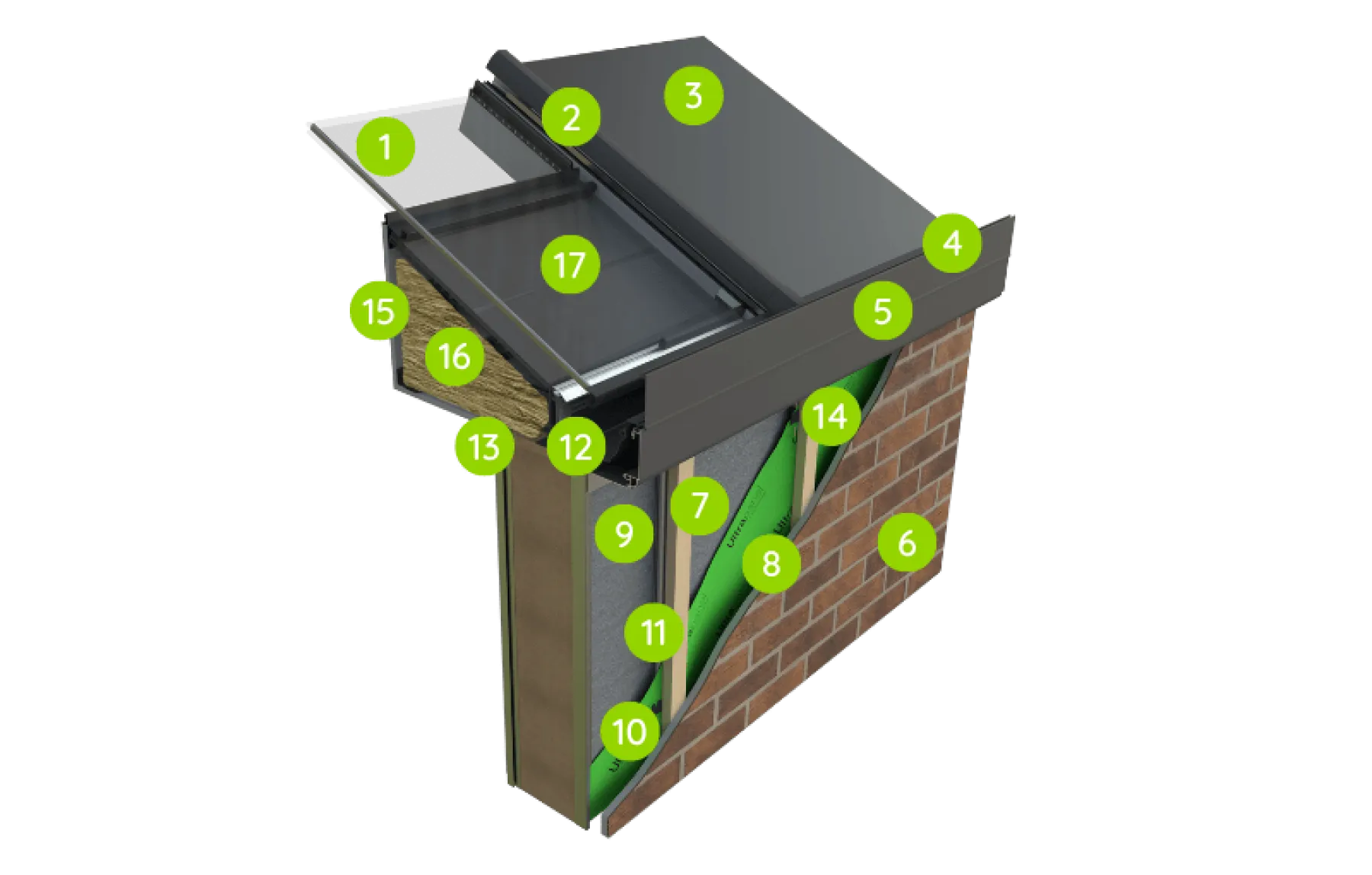

Hybrid Roof

Available for roof pitches from 2.5° to 40° and fully configurable to any shape and size. The Hybrid Roof combines unique contemporary grey panels with rectangular or shaped glazed panels that can be placed anywhere in the roof.

  • 1 Performance Glass
  • 2 Glazing Bar
  • 3 Contemporary Grey U-Tec Panel
  • 4 Gutter
  • 5 Flat Cornice
  • 6 Brick Mesh
  • 7 Timber Battens
  • 8 Calcium Silicate Board
  • 9 Insulated Wall Panels
  • 10 Membrane
  • 11 Steel Clips
  • 12 Eaves Beam
  • 13 Walling Top Tray
  • 14 Membrane Clips
  • 15 Internal Pelmet
  • 16 Earthwool
  • 17 Modesty Panel
hup! Hybrid Roof

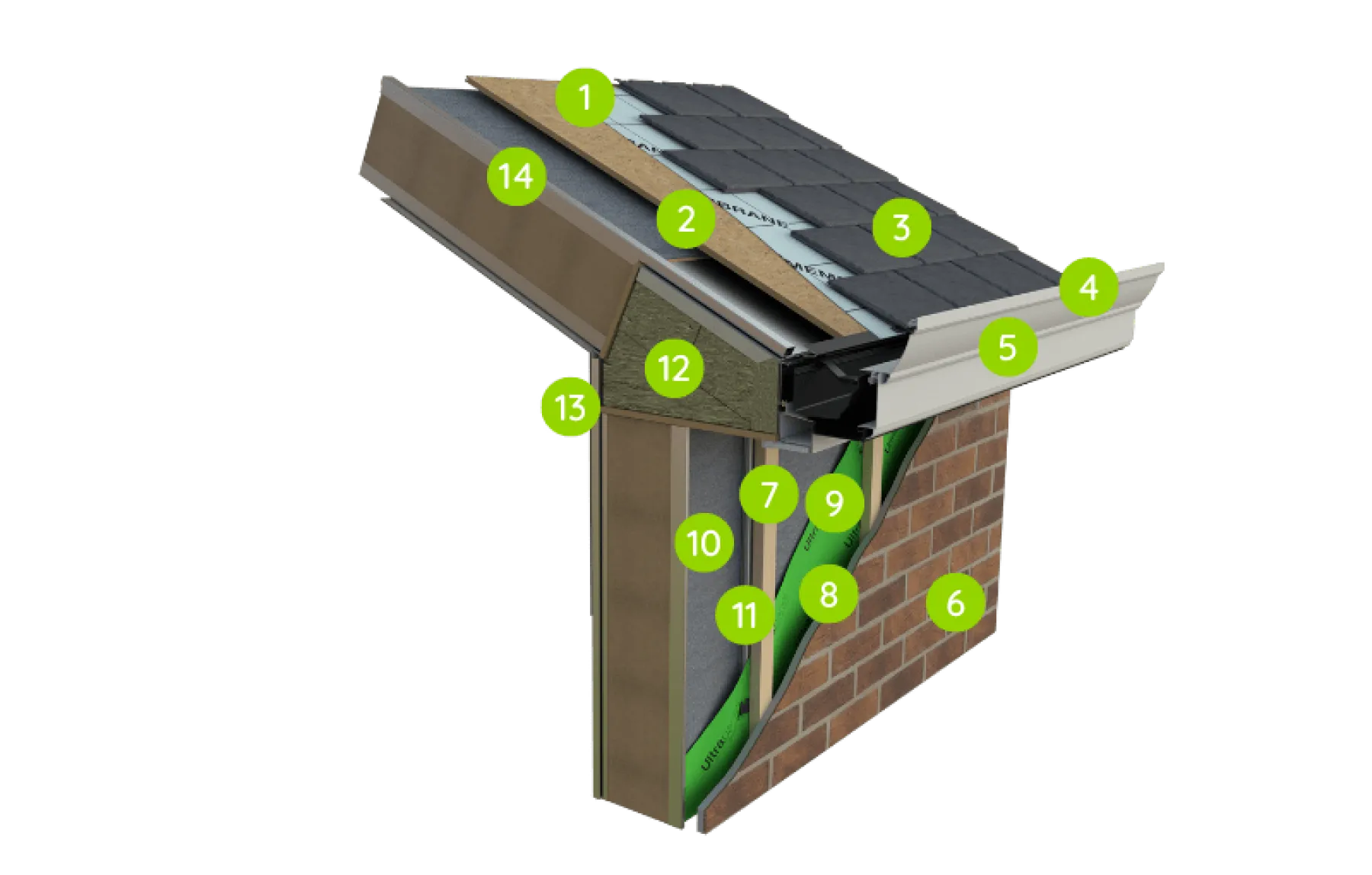

Tiled Roof

The hup! Tiled Roof does not need a tie bar like other lightweight Tiled Roof systems. Available with a choice of full height glazing panels in a range of high performance glass or conventional Velux windows, the roof can accommodate door spans of up to 5m with no need for extra structural support.

  • 1 Breathable Membrane
  • 2 Tongue and Groove OSB Deck
  • 3 Lightweight Authentic Tiles
  • 4 Gutter
  • 5 Curved Cornice
  • 6 Brick Mesh
  • 7 Timber Battens
  • 8 Calcium Silicate Board
  • 9 Membrane
  • 10 Insulated Wall Panels
  • 11 Steel Clips
  • 12 Super Strong Box Beam
  • 13 Internal Clips
  • 14 Insulated Roof Panels
hup! Tiled Roof

Flat Roof

Available in rectangular shapes up to 4m projection and 7m wide. With all structural calculations taken care of in one easy order the hup! Flat Roof can accommodate 0, 1 or 2 apertures and supplied with lanterns or flat skylights as required.

  • 1 Insulated Kerb
  • 2 Vapour Control Layer
  • 3 Insulated Roof Panels
  • 4 Classic Fascia
  • 5 Gutter
  • 6 Brick Mesh
  • 7 Timber Battens
  • 8 Calcium Silicate Board
  • 9 Membrane
  • 10 Insulated Wall Panels
  • 11 Steel Clips
  • 12 Super Strong Insulated Ring Beam
  • 13 Membrane Clips

New Vista Roof

Coming soon, Vista is a low cost flat roof and modern reverse mono pitch roof system.

  • Low pitch reverse lean-to with pitches as low as 2.5° to deliver a flat roof look.
  • Choose from a flat interior ceiling or one that slopes toward the garden to frame the view.
  • Fully finished roof – no need for flat roof covering or membrane.
  • Create contemporary asymmetric extensions with contrasting finish.
