REPLACEMENT TILED ROOF THAT CAN INCORPORATE FULL RECTANGULAR GLASS PANELS.

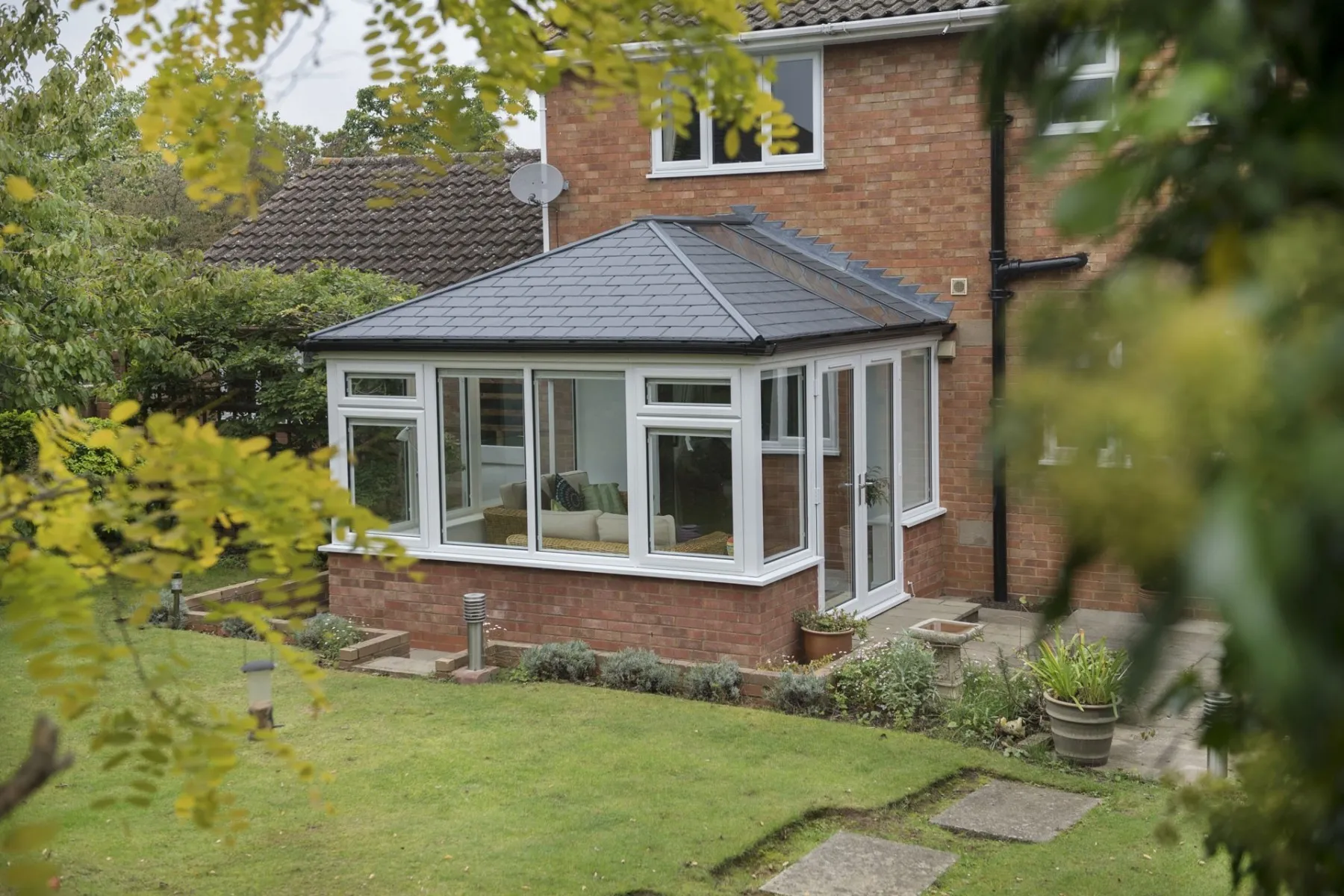

Ultraroof380 is a cost effective, simple to fit pre- packaged solid roof kit that is perfect for the replacement of tired conservatory roofs.
Ultraroof380 substantially overcomes – for the consumer – the twin issues of the conservatory being too hot in summer and too cold in winter. Moreover, it creates a beautiful vaulted plastered ceiling inside and with a stepped detail at the eaves the perfect place for cables and spotlights.

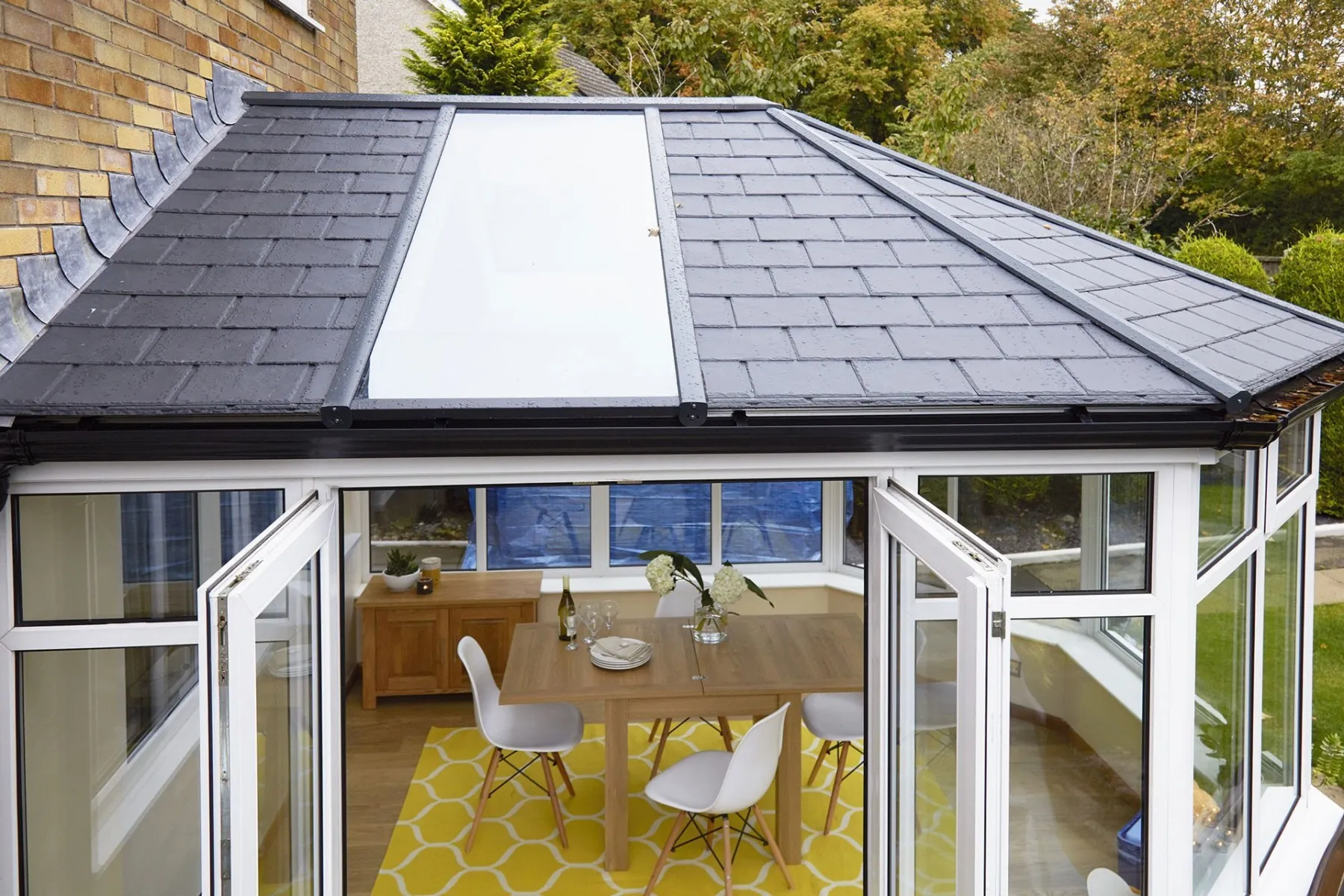

For those consumers who still want an element of light through their new solid roof, the clever configurable technology allows the fitment of multiple glass panels – this can be a major consideration to protect light into the adjacent room.

This is what you receive with Ultraroof380;

• Solid roof including slate effect tiles sheet
• Classic roof in RAL7016 ‘matt effect’
• All insulation and battens
• Fascia board
• Black Marley Classic gutter.

Key performance criteria

• The product can be designed with window frames to all elevations - no support posts
• If bi-folding doors are to be used they MUST be bottom supported NOT top hung
• The standard soffit projects approx 40mm beyond the external face of the window frame - box eaves beam is approx 380mm front to back depth
• Pitch range using UltraTile is 12.5° - 41°
• System ‘U’ values - with the 190mm Unidek Aero panels is 0.16W/m2°C

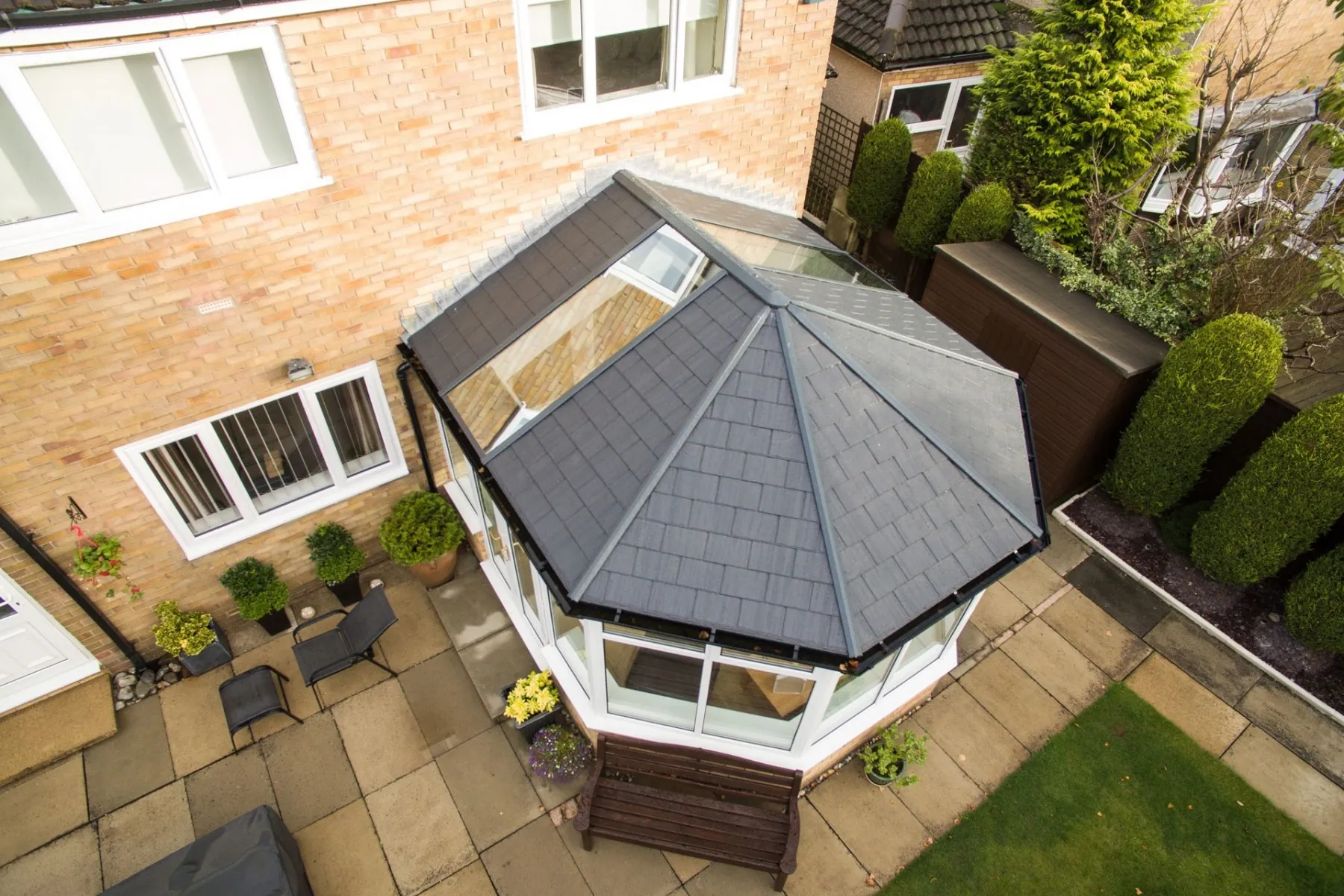

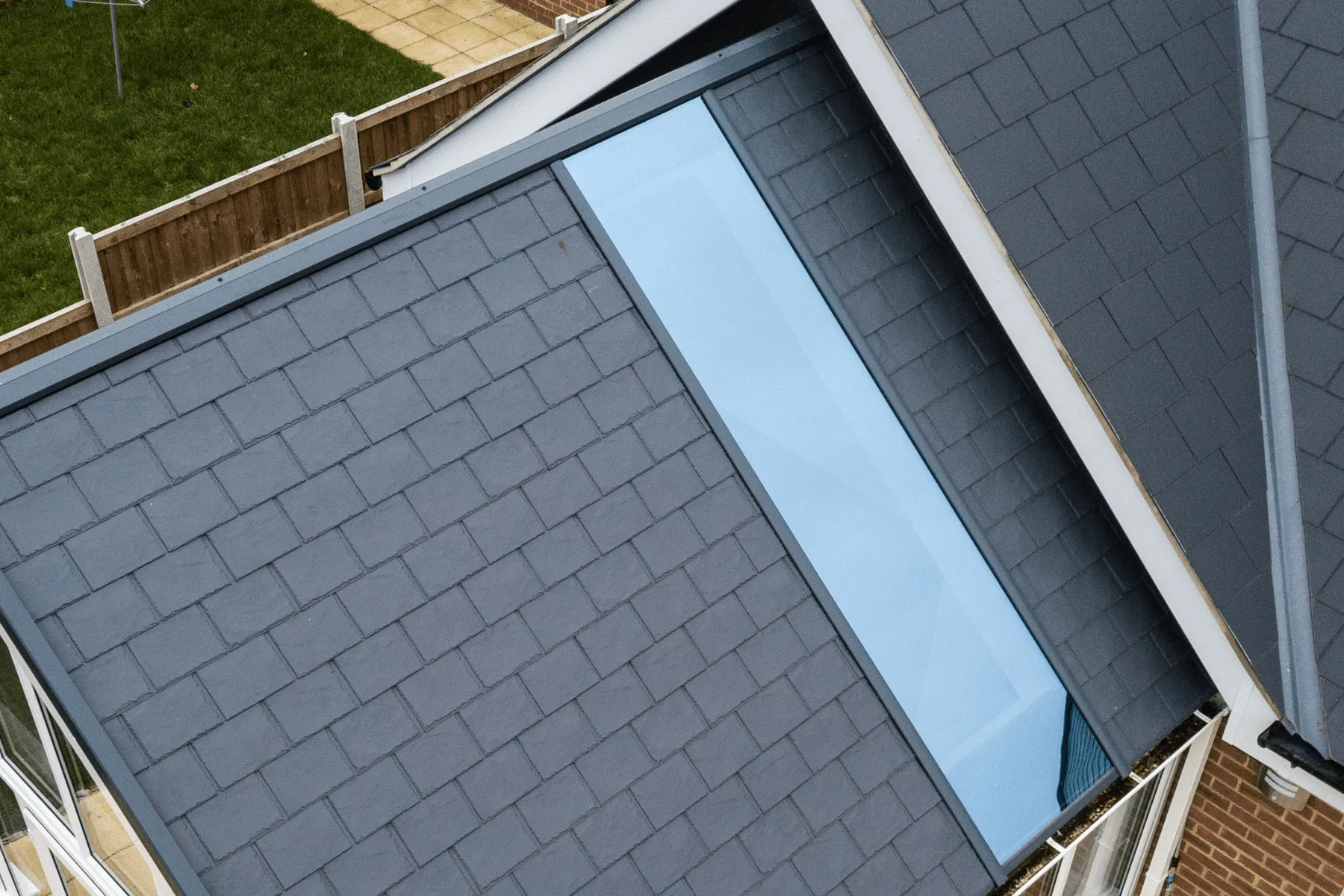

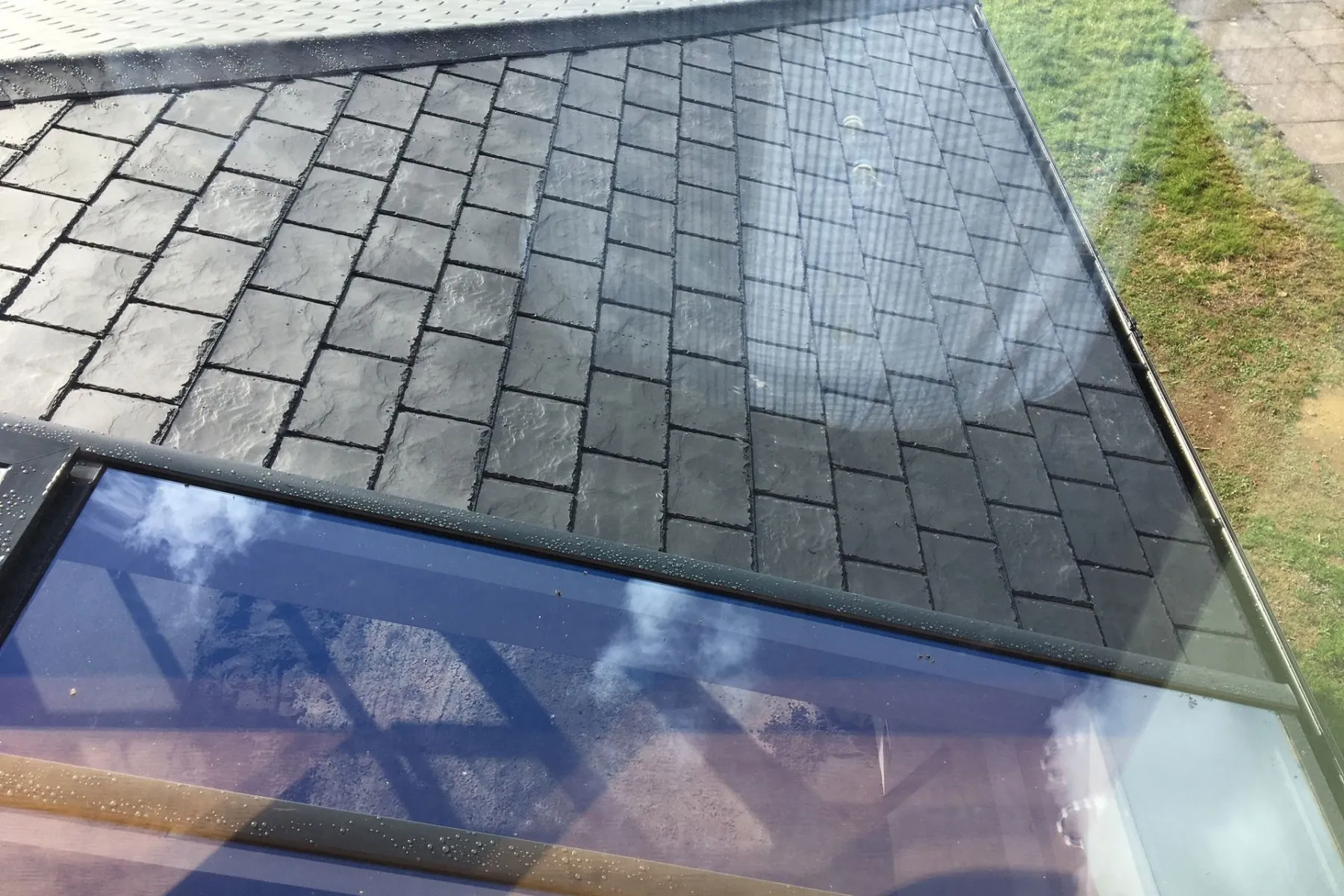

• Rectangular glass panels can be integrated to maintain light into any adjacent room
• Everything is pre-fabricated in our highly efficient factory to ensure rapid one day fit on site
• On a 4m x 4m Georgian, the system weight is 38kg/M² including plasterboard (12kg/m2 polycarbonate roof and 30kgM² for a glass roof).

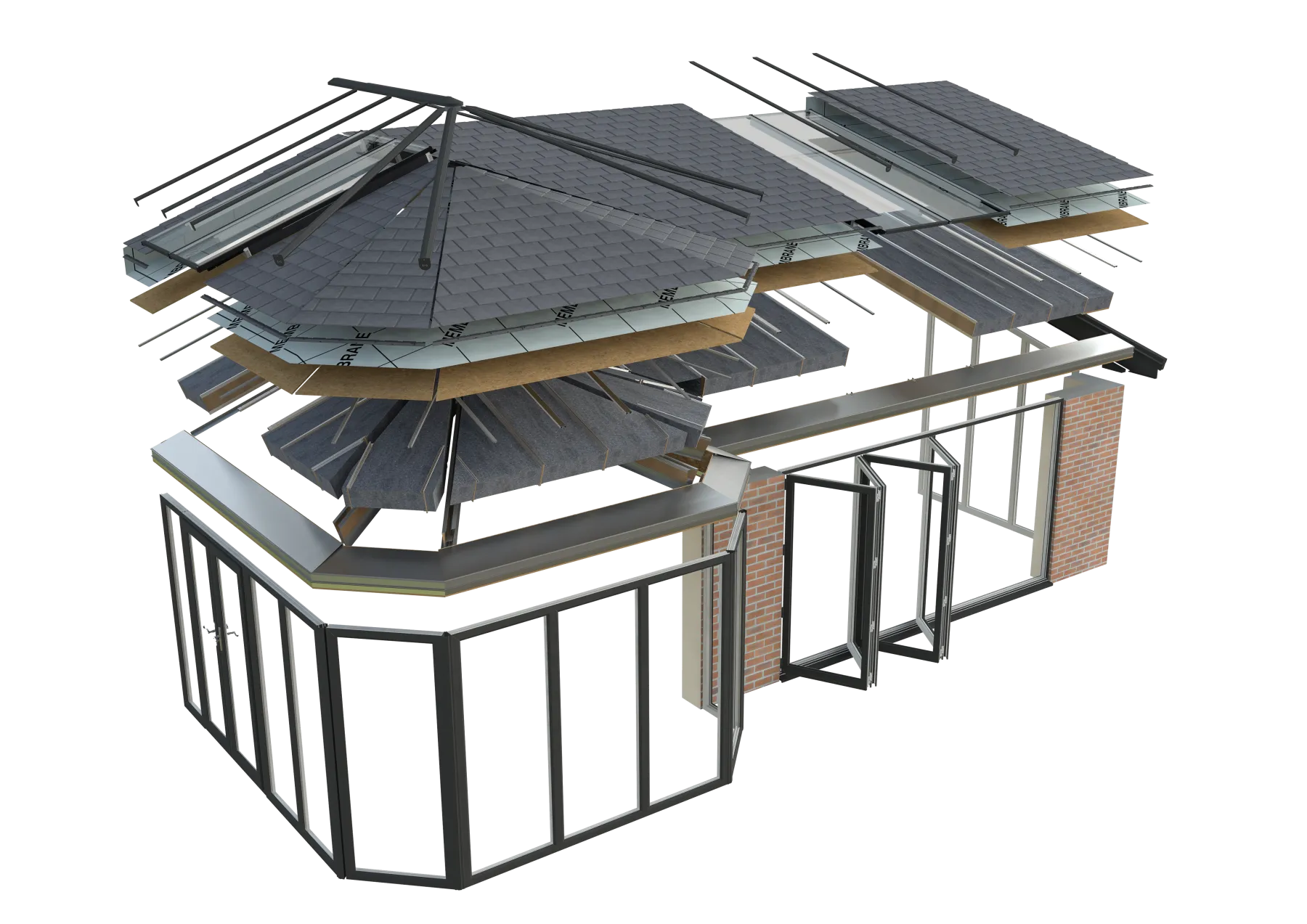

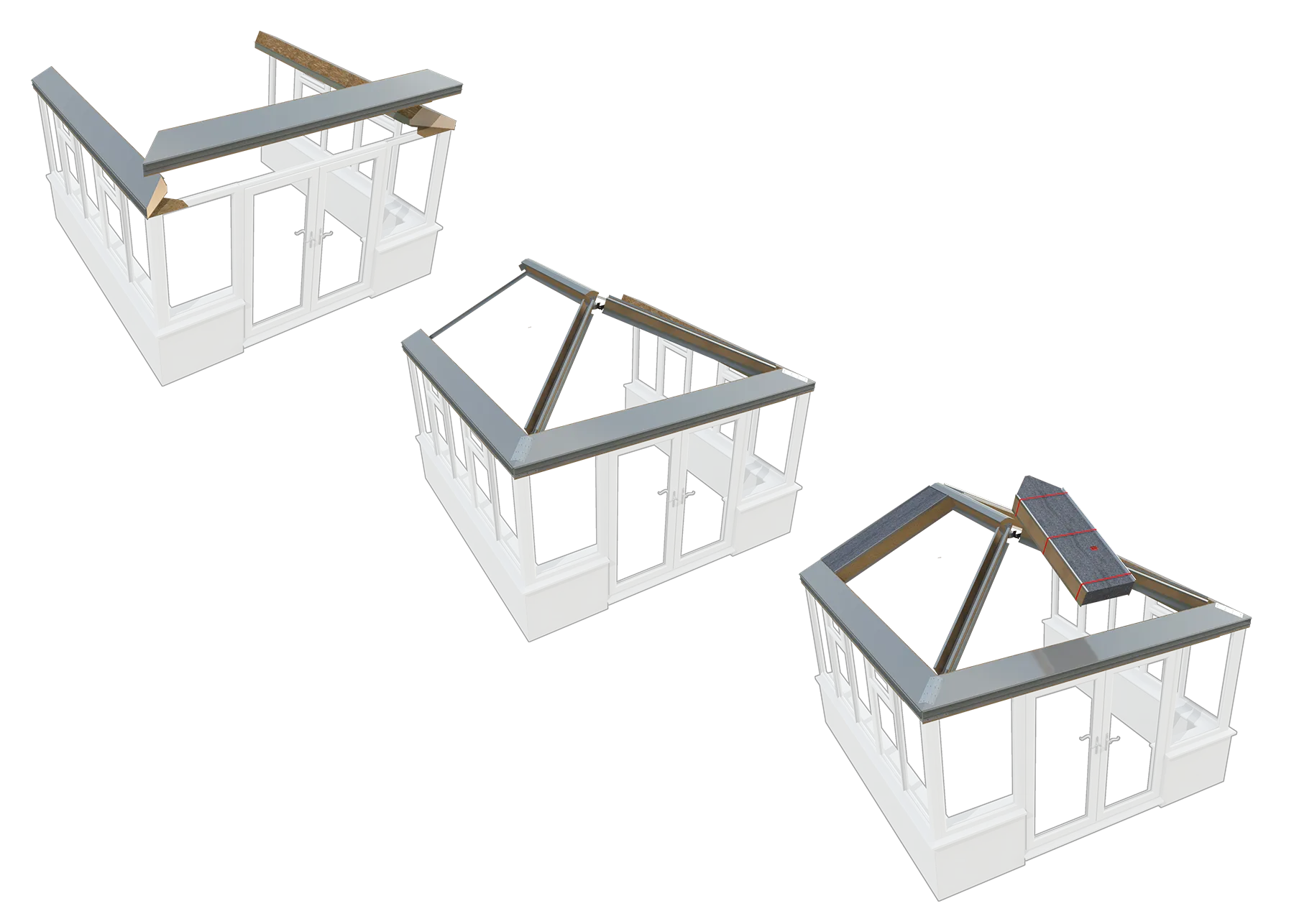

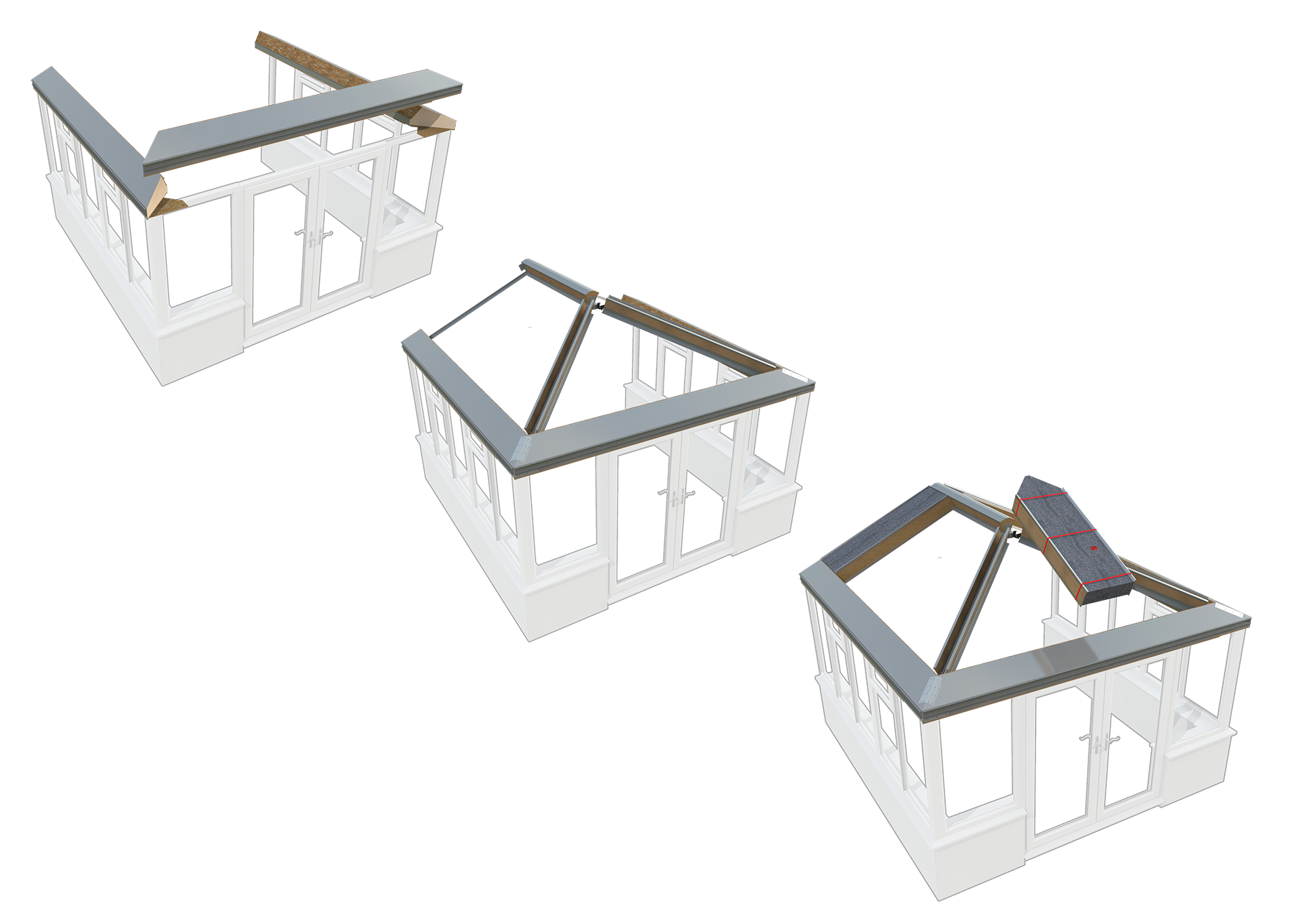

It is a packaged solution, off site manufactured for rapid assembly and compliance with relevant Building Regulations. Ultraroof380 is classed as a ‘warm roof’ and gives a vaulted/loft type ceiling. There are three major elements to Ultraroof380;

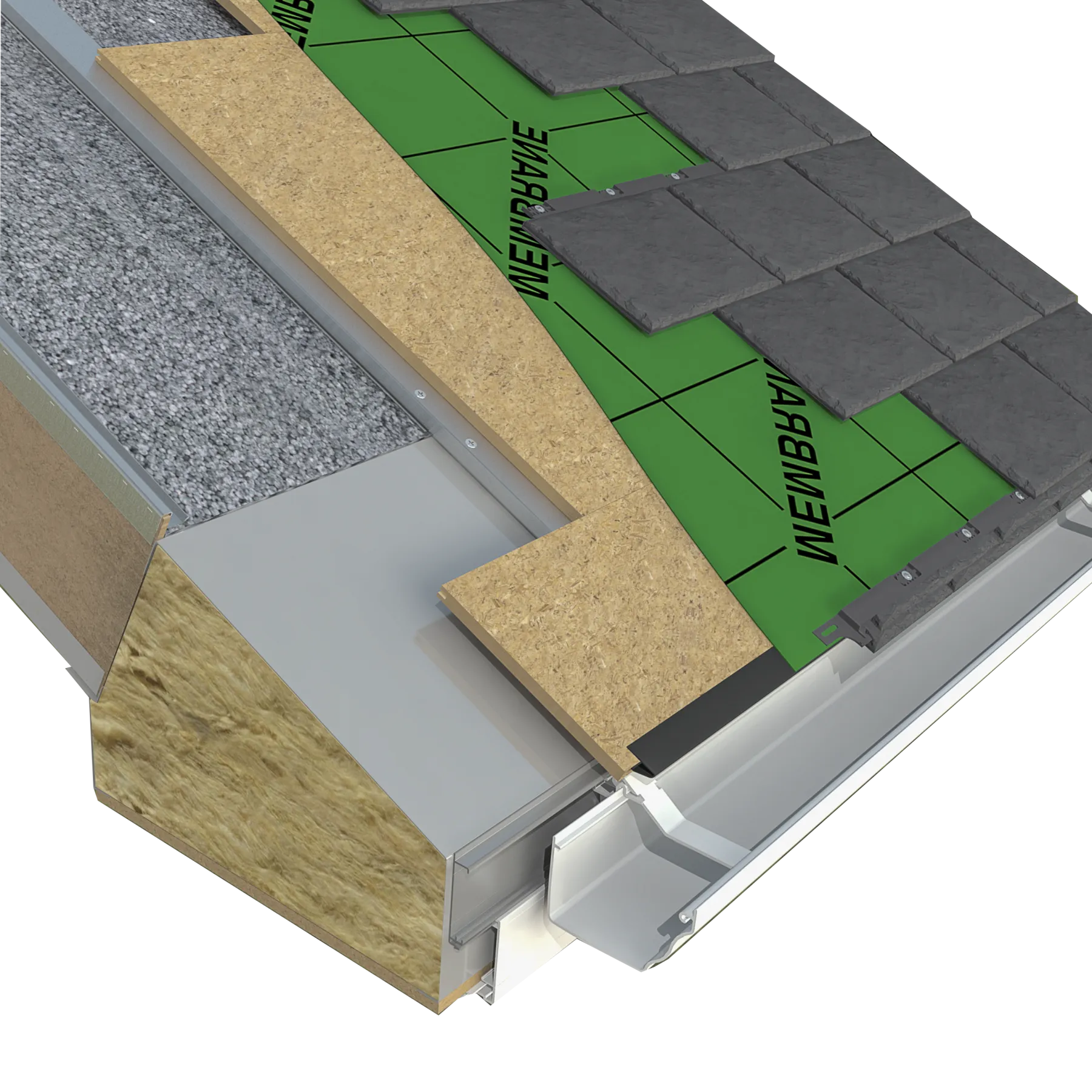

1. A patented box eaves beam, filled with EPS beads as used in cavity insulation - that forms the soffit structure - approx 380mm front to back depth.

2. A hidden structural aluminium framework for hips, ridge and starter bars.

3. Mechanically fixed Kingspan Unidek Aero Structural Insulated Roof Panels are attached to the box eaves and structural framework.

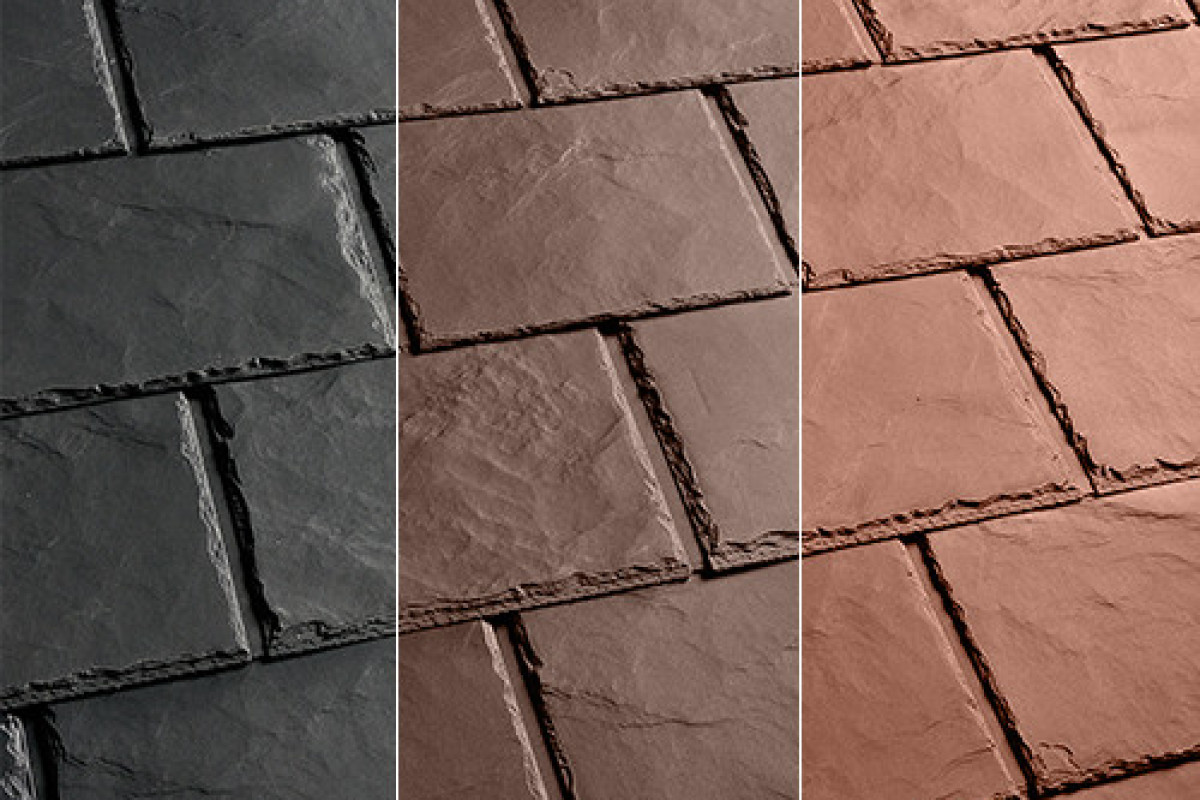

The roof comes with the counter battens already fixed. Tongue and grooved 12mm OSB is then fixed before a self adhesive, high performance water proofing layer is laid. UltraTile engineered copolymer interlocking tiles sheet (12 slates per sheet) is then laid across the roof slope. Overall dimensions : 135.3 cm x 57.15 cm x 1.9 cm 8 panels per box : approximately 4,65 m2 / 0,58 m2 per panel.

Key performance criteria

• The product can be designed with window frames to all elevations - no support posts
• If bi-folding doors are to be used they MUST be bottom supported NOT top hung
• The standard soffit projects approx 40mm beyond the external face of the window frame - box eaves beam is approx 380mm front to back depth
• Pitch range using Ultratile is 12.5° - 41°
• System ‘U’ values - with the 190mm Unidek Aero panels is 0.16W/m2°C
• Rectangular glass panels can be integrated to maintain light into any adjacent room
• Everything is pre-fabricated in our highly efficient factory to ensure rapid one day fit on site
• On a 4m x 4m Georgian, the system weight is 38kg/M² including plasterboard (12kg/m2 polycarbonate roof and 30kgM² for a glass roof)

Go to Ultraroof380 Info Page to Download everything you need

Ultraroof All Tile

The ‘Ultraroof All Tile’ enables the use of conventional roof coverings like concrete tiles, clay tiles, slates etc. with all the benefits of the Ultraroof system!

• Can be tiled to match the house roof perfectly
• Much faster to fit than a traditionally constructed roof

• No tie bar... EVER!

• Extremely thermally efficient - no additional insulation needed

• Compatible with Velux Skylights
