Insulated Columns Design

Super Insulated Columns

Read More

Stylish, Elegant, Thermally Efficient Structural Columns

Available in different sizes and finishes, these engineered columns give your building inner strength, solidity and warmth.

The super-insulated core makes these columns five times more thermally efficient than similarly sized brick columns.

Columns can be large or small, full height or sat on a low wall and can be placed on the corners or used as inline columns.

Columns are clad in powder coated aluminium with either a plain or a fluted infill panel and available with a range of plinths and bases.

Match super-insulated columns to your windows or doors in any RAL Colour. White, landmark green, pure cream and urban grey are standard colours.

Installed in minutes without brickwork minimises the need for wet trades and mess on site.

A fully building regulation compliant extension can be built using super-insulated columns allowing the removal of internal doors.

Super Insulated Columns

A build with super-insulated columns is the best of all worlds, combining elements of light and sky with the solidity of internal plastered walls and ceilings.

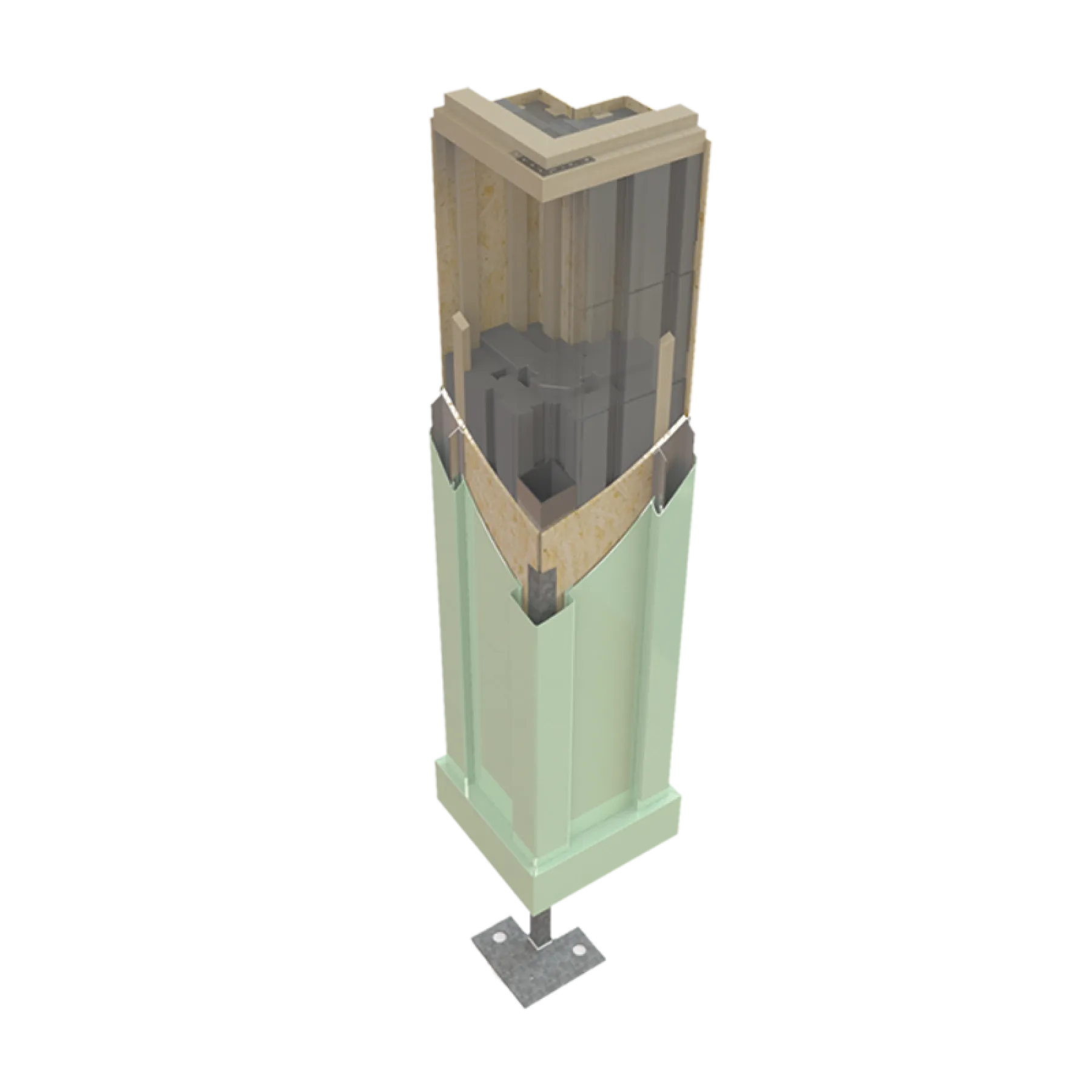

  • 1 Classic Roof with cornice sits on top
  • 2 Insulated core is styropor carbon enriched expanded polystyrene
  • 3 OSB board to all sides mechanically fixed to battens (wrapped in Ultraframe branded breathable membrane)
  • 4 Various base details available
  • 5 Powder coated aluminium claddings in a range of 2 standard colours and white
  • 6 Brickwork set out post (Different posts needed in some situations)
Insulated Columns

1

2

3

4

5

6

Colour Choice

Unrivalled Choice of Colour Options

Super insulated columns clad with powder coated coloured aluminium cladding panels to externally create a radical new look whilst internally improving usablility and comfort levels.

You can choose from a distinctive colour palette of Classic White, Landmark Green, Pure Cream and Urban Grey or we can tailor your Insulated Columns to any RAL colour you desire.

Black
Satin Black
Anthracite
Anthracite Grey
White
White
Custom RAL Colour
Custom RAL Colour

Bespoke Colours Available On Order.

Ultraframe Core Brochure
Download
Super Insulated Columns Order Form
Download

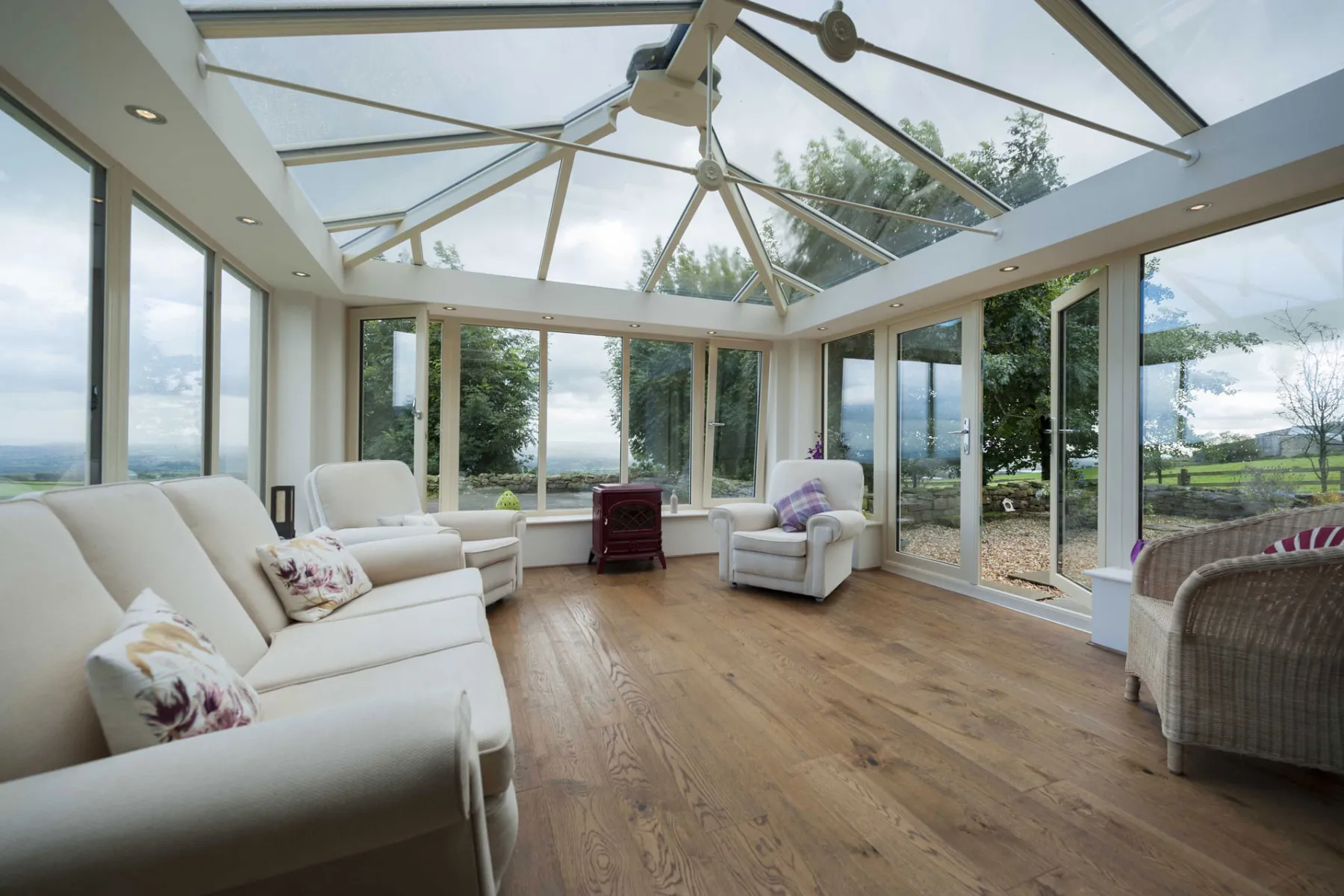

Glass Roof Designs

The superior thermal qualities of the super-insulated columns help you keep warm in the winter and reflect heat away in the summer, enabling you to use your extension or orangery all year round.

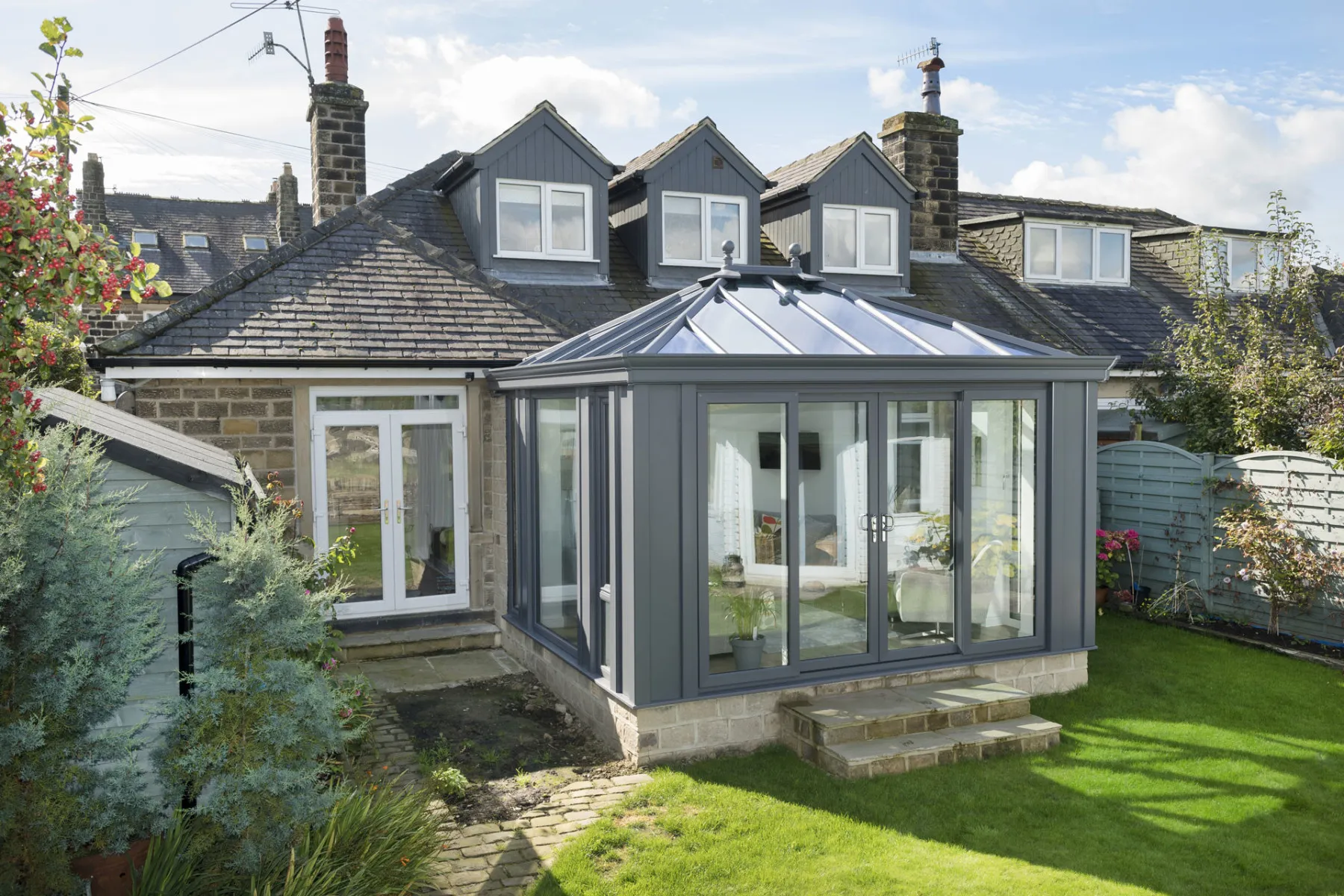

Extension Prices

The superior thermal qualities of the super-insulated columns help you keep warm in the winter and reflect heat away in the summer, enabling you to use your extension or orangery all year round.

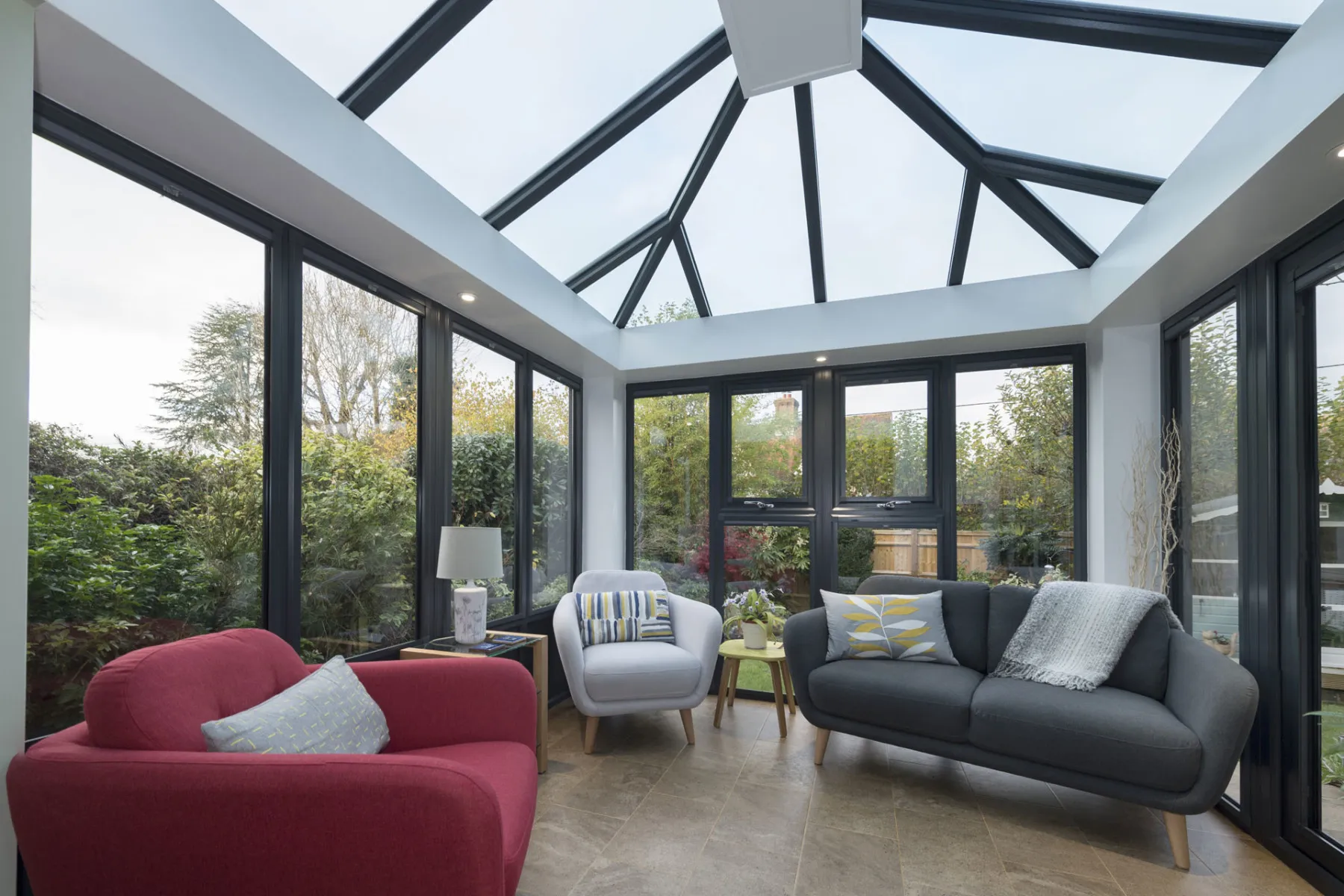

What is an orangery

The superior thermal qualities of the super-insulated columns help you keep warm in the winter and reflect heat away in the summer, enabling you to use your extension or orangery all year round.

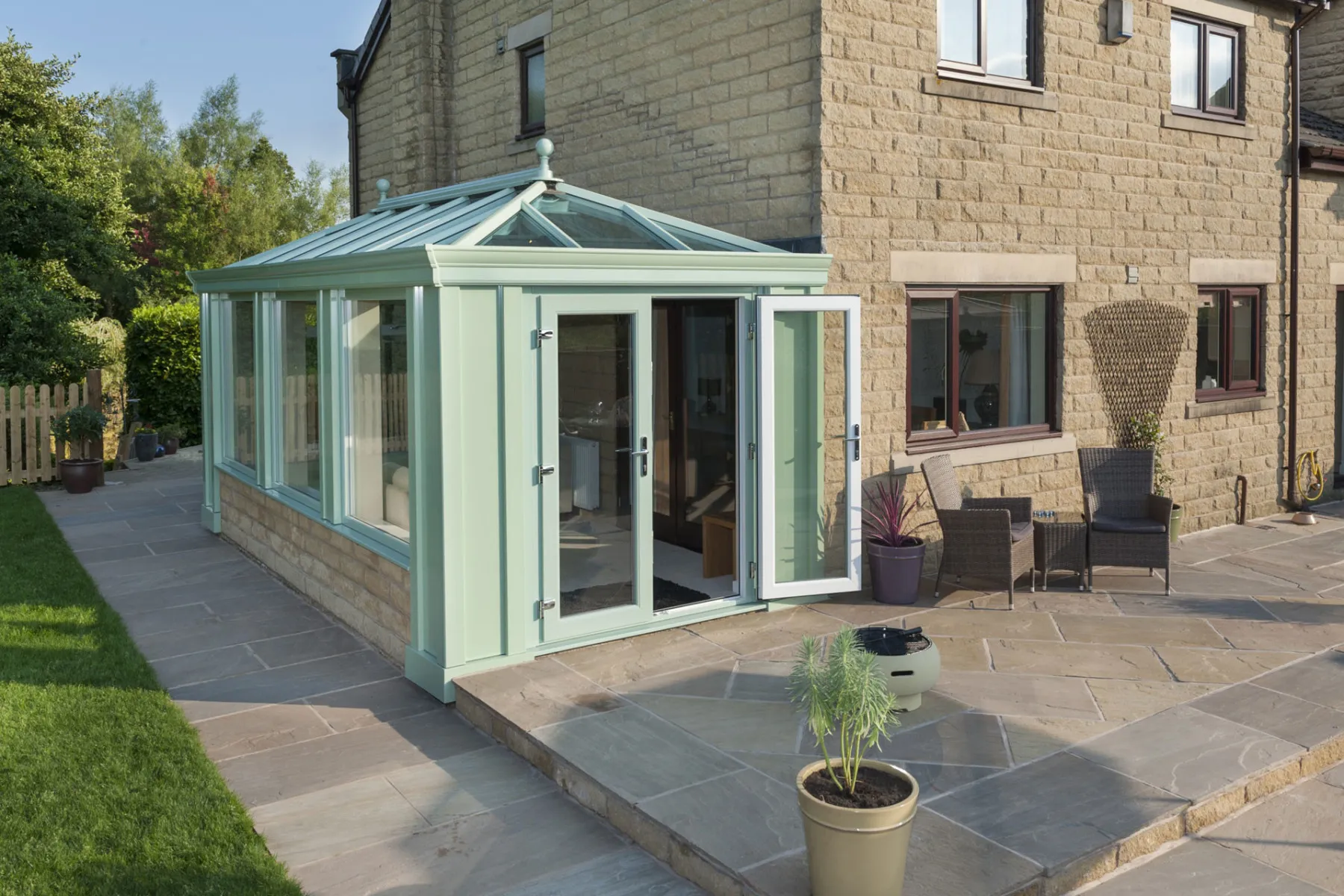

Orangery Colours

The superior thermal qualities of the super-insulated columns help you keep warm in the winter and reflect heat away in the summer, enabling you to use your extension or orangery all year round.

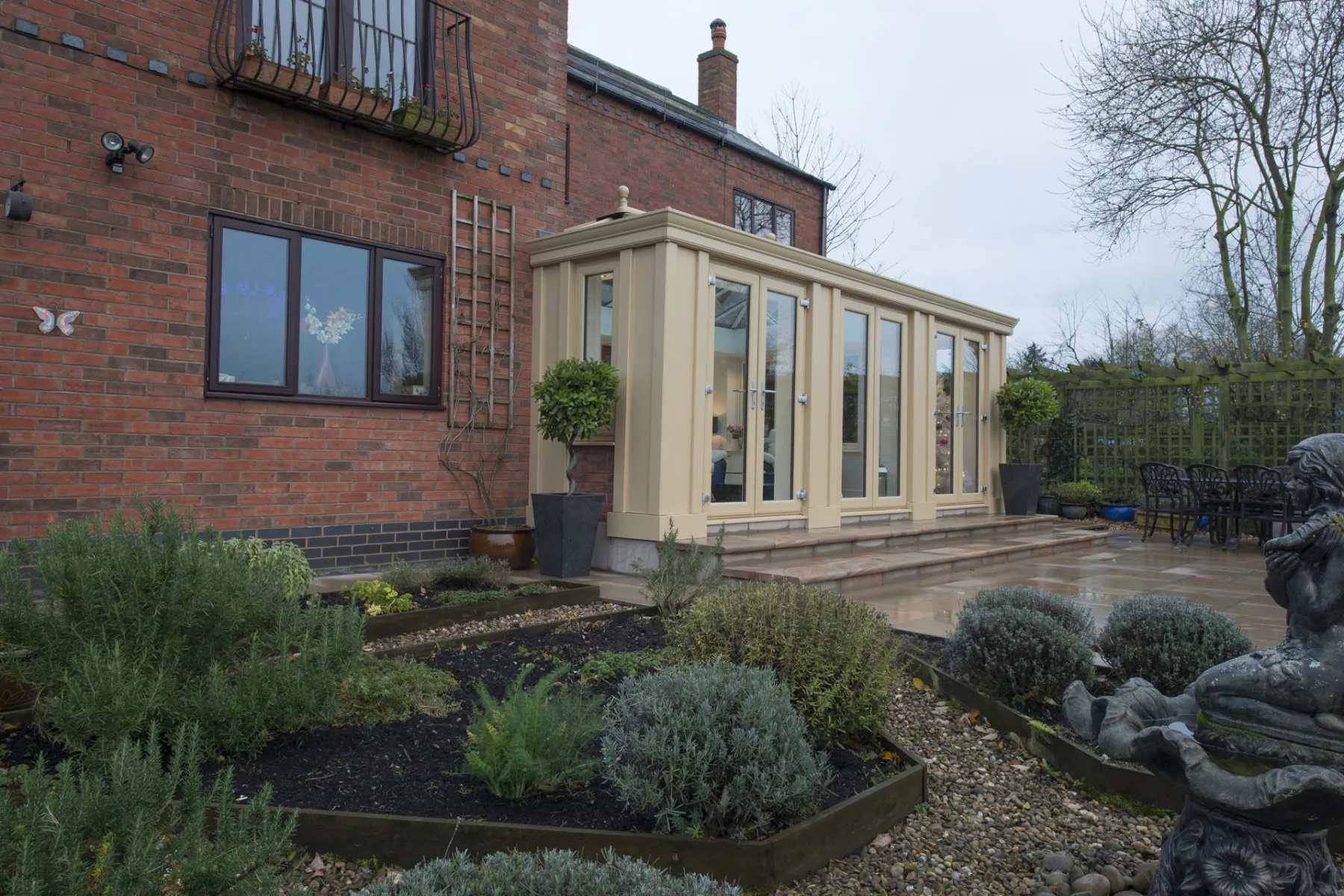

Orangery Designs

The superior thermal qualities of the super-insulated columns help you keep warm in the winter and reflect heat away in the summer, enabling you to use your extension or orangery all year round.

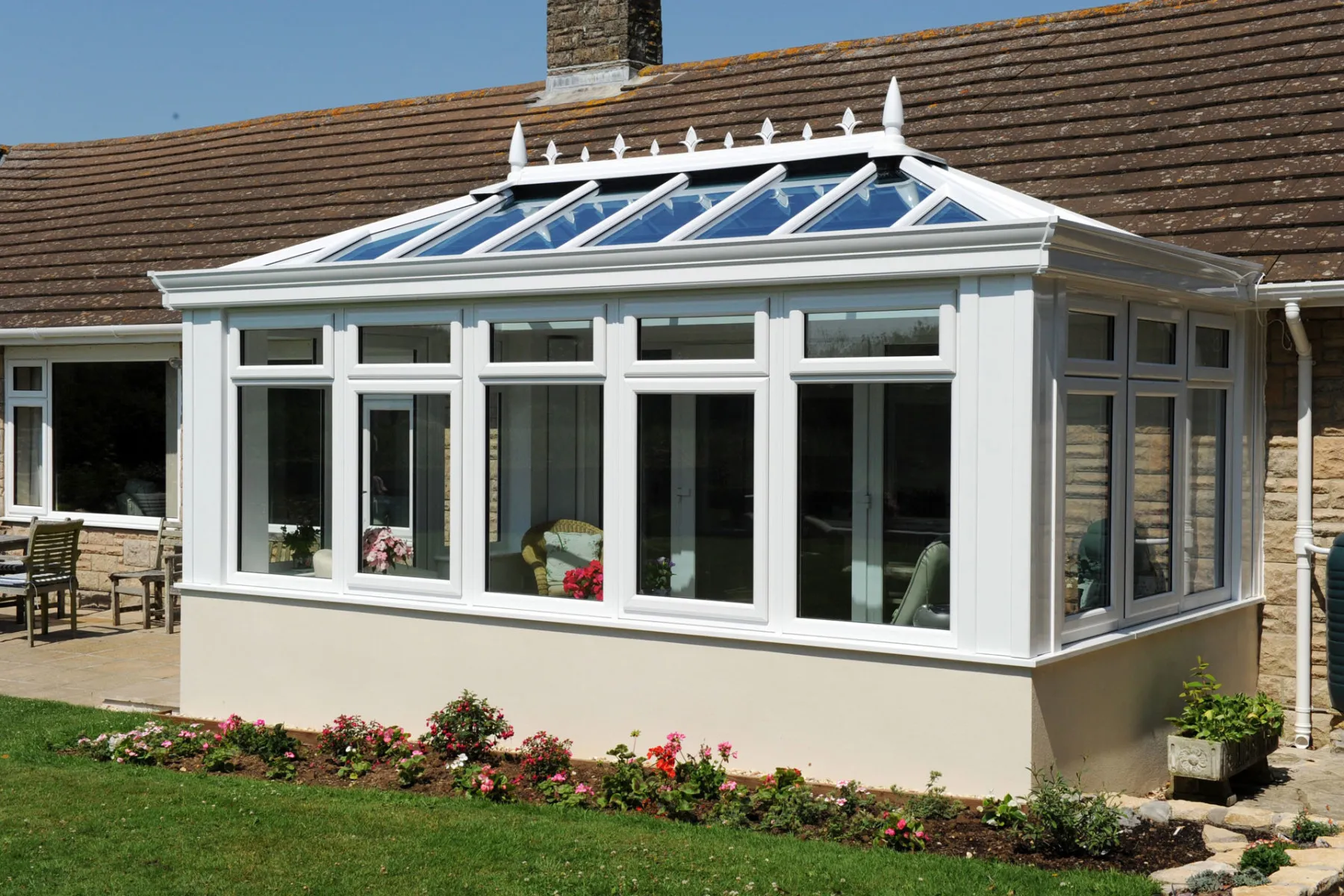

Conservatory Prices

The superior thermal qualities of the super-insulated columns help you keep warm in the winter and reflect heat away in the summer, enabling you to use your extension or orangery all year round.

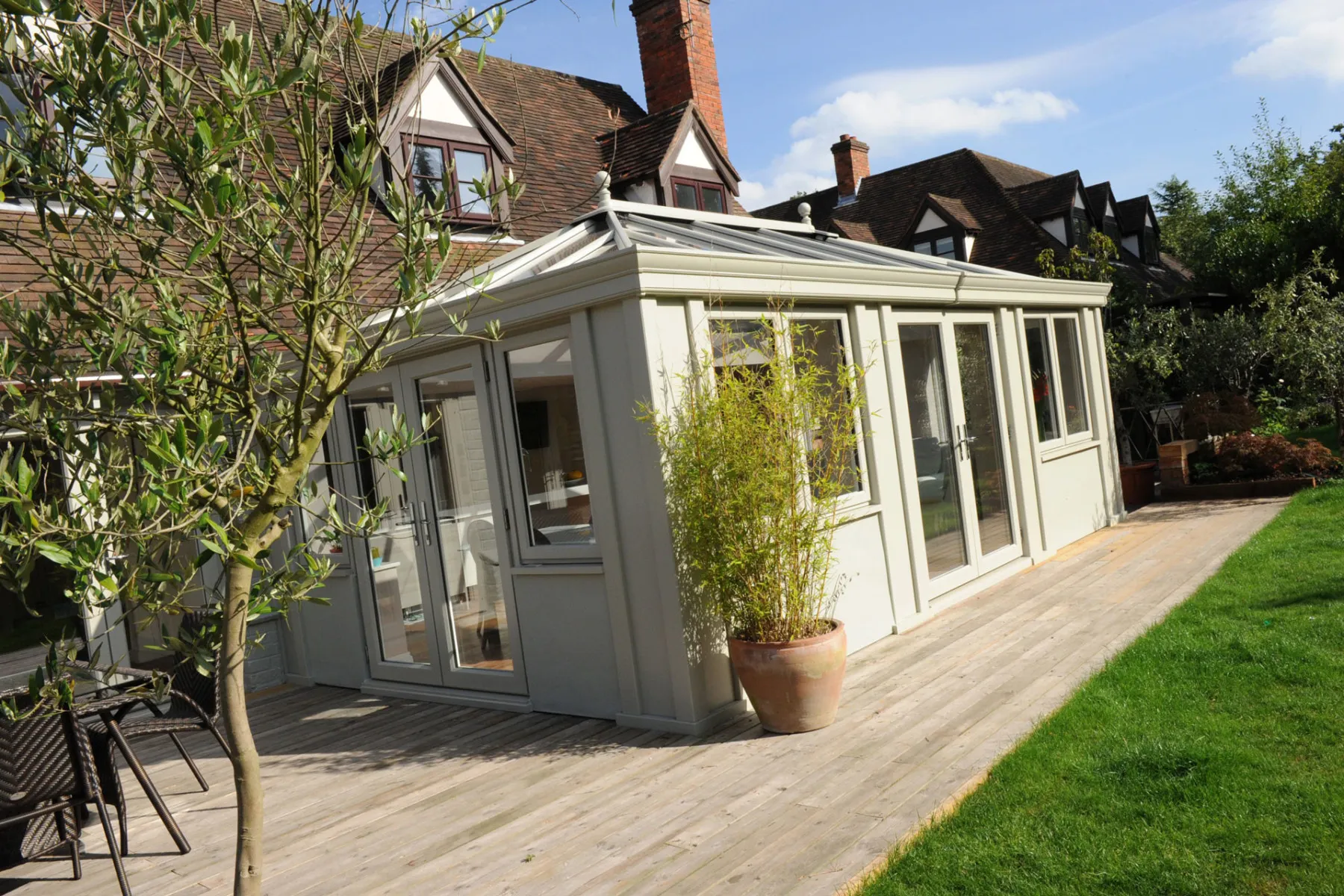

Conservatory Designs

The superior thermal qualities of the super-insulated columns help you keep warm in the winter and reflect heat away in the summer, enabling you to use your extension or orangery all year round.

Glass Roof Designs
Extension Prices
What is an orangery
Orangery Colours
Orangery Designs
Conservatory Prices
Conservatory Designs

Key Performance Criteria

  • Choose from columns for full height situations or dwarf wall.
  • At the top of the columns, use either cornice or a cill detail.
  • Choose from two suites of columns in large or small formats.
  • Suite comprises of 90 degree, in-line connectors & abutments.
  • U-value for the post of 0.15, which is five times more thermally efficient than an equivalent sized brick column.
  • Optimised to work with Building Regulation compliant 300mm cavity dwarf wall construction. For cavity walls less than 300mm, studding out is required.

What is an orangery

Sizes

Super-insulated columns can be large or small, full height or sitting on a low wall, on the corners, in between as inline columns or abutment columns.

90° Corner Column Configuration (LARGE)
90° Corner Column Configuration (SMALL)
